Horizontal Four Slide Sealing Machine

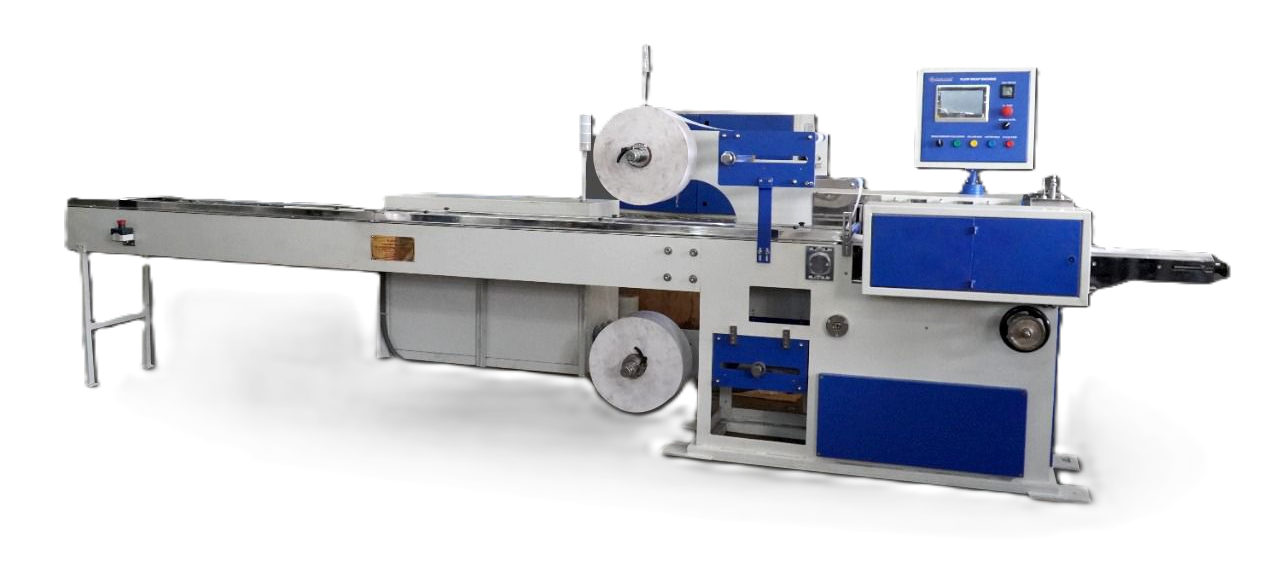

Horizontal Four Slide Sealing Machine
Horizontal four side sealing pouch packing machine can pack a variety of flexible products of different shapes and sizes with all types of heat sealable films and laminates. these machines are extensively used to pack gauze swaps, eye pad, face mask, tissues, etc., drive of machine is electro-mechanical.

Key Features

Cantilever construction that provides for easy cleaning and maintenance, with easy access to mechanical and electrical components

Left to right operating direction

Rotary cross sealing jaws with an electronic overload safety switch

Self-centering film reel holder with a operated brake system

In feed conveyor 3000 mm long

7.0”HMI 65K Color Display provides ease in setting machine parameters, it displays operational and error messages

The control allows data storage for multi different machine set-ups

Individual heater controls are used for easily find the heater conditions

Providing no product sensor for If there is no product in the feeding conveyor the sensor turns the machine off

Technical Specifications

Operating System

Electro Mechanical

Feeding Style


Packing Style

Four Side Seal

Packing Size

50mm - 250mm, Width : 50mm - 150mm, Height : 5mm - 30mm

Packing Film Size

Cut Length : 80mm - 320mm, Open Width : 100mm - 300mm

Packing Material

All type of laminated (Bopp, LD Polyester, Poly Coated Paper)

Production Output

Approx. 20 To 100 Packs / Minute (Depending Upon Product Size)


440v, 4.5kw


750w Servo Motor with Gear Box – 1No,750w Induction Motor with Gear Box - 1no


Pencil Heaters 50v, 350 W X 4 No’s, Round Heaters 50v,350w X 4 No’s

Machine Dimension

Length : 5100mm, Width:1000mm, Height: 1500mm (Approx.)

Machine Weight

1100kg (Approx.)
