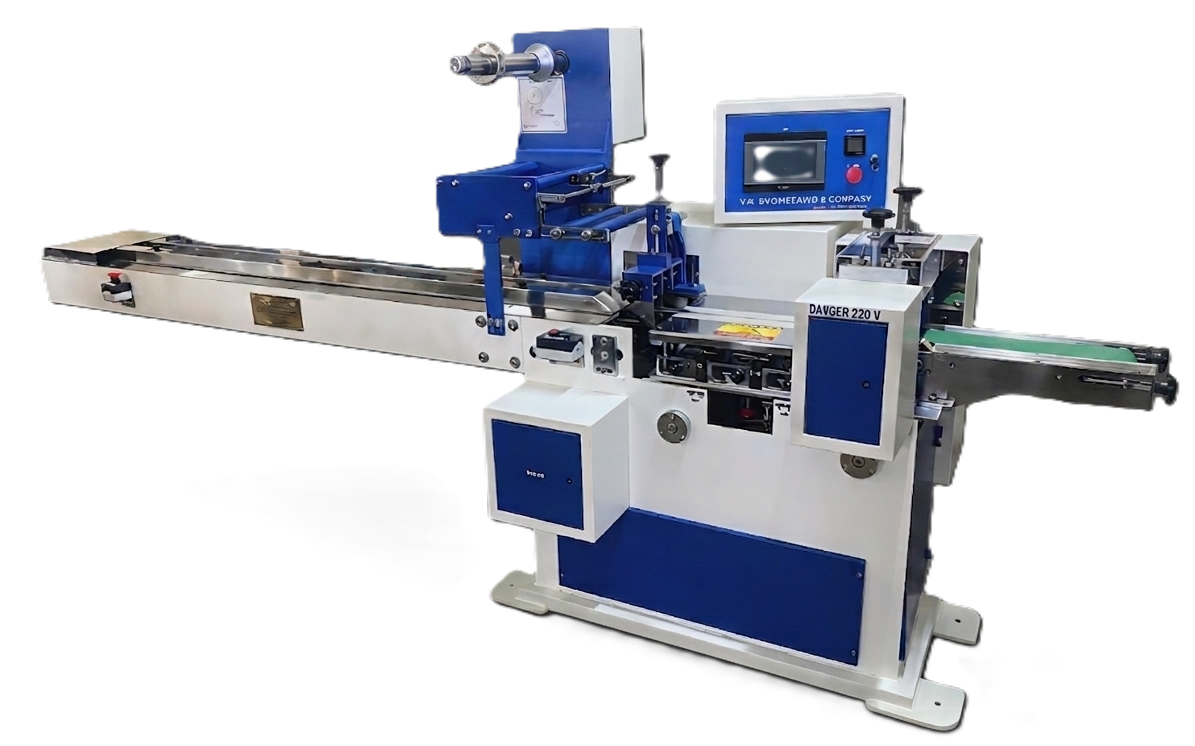

The Horizontal Flow Wrap Machine is designed for high-speed and efficient packaging of a wide range of solid products in various shapes and sizes. The machine is suitable for packaging products using all types of heat-sealable films and laminated materials, ensuring secure sealing, product protection, and attractive presentation.
These machines are extensively used for packing Appalams, Rusks, Biscuits, Bun, Chocolate Bars, Stick Ice Cream Bars, Cakes, Groundnut Chikkies, Cotton Rolls, Bandage Rolls, Scrub Pads, Noodles, and similar products. The machine produces centre-sealed pillow packs using heat-sealable laminated polyester or B.O.P.P. films and is driven by a robust electro-mechanical system for reliable performance.
Key Features
Cantilever construction that provides for easy cleaning and maintenance, with easy access to mechanical and electrical components
Left to right operating direction
Rotary cross sealing jaws with an electronic overload safety switch
Self-centering film reel holder with a operated brake system
In feed conveyor 2000mm long
Adjustable film folding box
7.0”HMI 65K Color Display provides ease in setting machine parameters, it displays operational and error messages
The control allows data storage for multi different machine set-ups
Individual heater controls are used for easily find the heater conditions
A no product sensor is installed to prevent empty bags
Technical Specifications
Operating System
Servo PLC
Feeding Style
Manual (or) Automatic
Packing Style
Centre Seal Pillow Type
Packing Size
Length : 30mm - 150mm Width : 30mm - 125mm Height : 5mm - 60mm
Packing Film Size
Cut Length : 65mm - 250mm Open Width : 100mm - 300mm
Packing Material
All Type of Laminated (Bopp, LD Polyester, Aluminum Foil)
Production Output
Approx. 20 To 150 Packs/ Minute (Depending Upon Product Size)
Power
440v , 4kw
Motor
750w Servo Motor With Gear Box – 3No’s
Heater
Pencil Heaters 220v, 300 W X 2 No’s Round Heaters 220v,150w X 4 No’s
Machine Dimension
Length : 3500mm, Width:1000mm, Height:1750mm (Approx.)
Machine Weight
600kg (Approx.)
Applications
Horizontal Flow Wrap Machine has the following applications
Appalam
Packing
Chocolate
Packing
