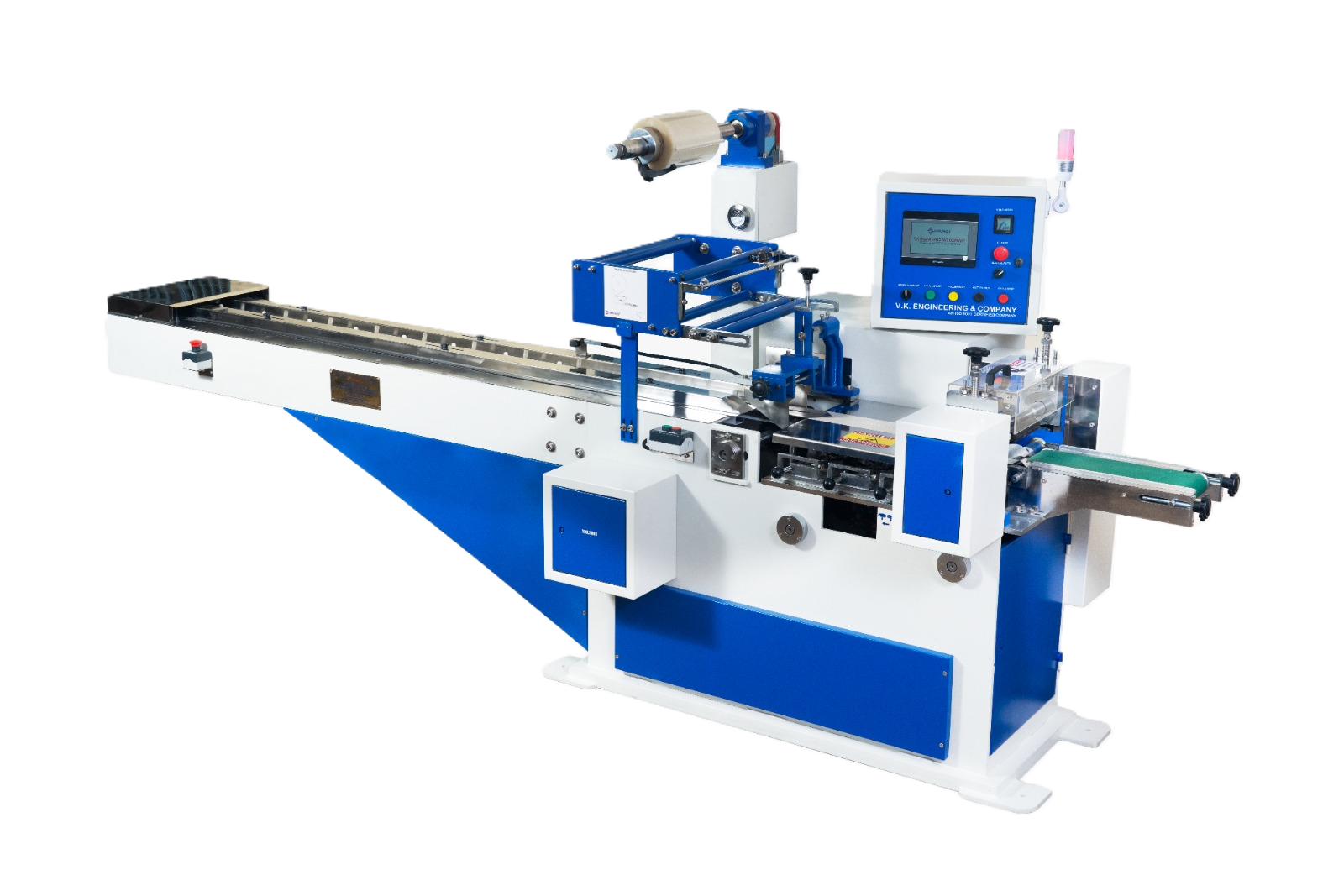

The Excel Make Servo PLC Based Automated Horizontal Flow Wrap Machine is designed for efficient and continuous packaging of a wide variety of solid products in different shapes and sizes. The machine is compatible with all types of heat-sealable films and laminated packaging materials, ensuring secure centre-sealed pillow packs with excellent product protection and presentation.
Widely used across food processing, bakery, confectionery, healthcare, and FMCG industries, this machine is suitable for packing Appalams, Rusks, Biscuits, Bun, Chocolate Bars, Stick Ice Cream Bars, Cakes, Groundnut Chikkies, Cotton & Bandage Roles, Scrub Pads, Noodles, and similar products. The servo-based automation system provides precise control, higher productivity, reduced wastage, and consistent packaging performance.
Key Features
Cantilever construction that provides for easy cleaning and maintenance, with easy access to mechanical and electrical components
Left to right operating direction
Rotary cross sealing jaws with an electronic overload safety switch
Self-centering film reel holder with a operated brake system
In feed conveyor 2000mm long
Adjustable film folding box
7.0”HMI 65K Color Display provides ease in setting machine parameters, it displays operational and error messages
The control allows data storage for multi different machine set-ups
Individual heater controls are used for easily find the heater conditions
Providing no product sensor A no product sensor is installed to prevent empty bags
Technical Specifications
Operating System
Servo model
Feeding Style
Manual
Packing Style
Centre Seal Pillow Type
Packing Size
Length : 30mm - 180mm Width : 30mm - 125mm Height : 5mm - 65mm
Packing Film Size
Cut Length : 65mm - 250mm Open Width : 100mm - 440mm
Packing Material
All Type Of Laminated (Bopp, LD Polyester, Aluminum Foil)
Production Output
Approx. 20 To 150 Packs/ Minute (Depending Upon Product Size)
Power
440v , 4.5kw
Motor
750w Servo Motor With Gear Box – 3 No’s
Heater
Pencil Heaters 50v, 350 W X 4 No’s Round Heaters50v,350w X4 No’s
Machine Dimension
Length : 3900mm, Width:1000mm, Height:1500mm (Approx.)
Machine Weight
1000kg (Approx.)
Applications
Horizontal Flow Wrap Machine has the following applications
Appalam
Packing
Chocolate
Packing
